Functies

Uitgebreide range opties
¾, 1½ of 2 HP versies 3-phase/50Hz geschikt voor een wijde range met toepassingen en site configuraties.
Consistente stroom
Pomp brandstof efficiënt over grotere afstanden en hoogtes met hogere temperaturen.
Integreerde leiding lekkage
Mechanische of elektronische leiding lekkage controle via TLS monitoring systeem met automatische uitschakeling voor maximale bescherming van het milieu.
Uniquely designed extractable
When removed, check valve, leak detector and siphon cartridge remain in manifold and do not require disconnection.
Hazard isolation
The electrical connection is automatically broken as the extractable is removed. This means that fuel in the manifold and non-isolated piping drains are sent safely back to the tank preventing spills and reducing service costs.
Vertical product discharge
Allows easier connection to horizontal pipe work using standard pipe fittings.
Twin siphon ports
Two siphon cartridge ports allow connection to multiple systems. Unique swivel design allows easier connection.
Lockable check valve
Easily relieve pressure and drain non-isolated product in the manifold and line safely into the tank for testing or maintenance.

Higher flow rates, lower power consumption, and increased safety and reliability.
Up to 5% Increased Flow – Improved stator and receptacle housing design provides larger fuel paths.
8% Less Power Consumption – More efficient motor design results in 8% reduction in wattage.
Better Quality – Red Jacket’s motor manufacturing yields improved quality, which means more station uptime than other STPs on the market.
Universal Compatibility – Fewer parts to stock.
Improved Reliability – Improved bearing design and upgraded insulation yield longer motor life.
Increased Safety – Maximum temperature remains ~125 degrees cooler vs. competitive models. Enhanced connectors separation meets latest flameproof standards.

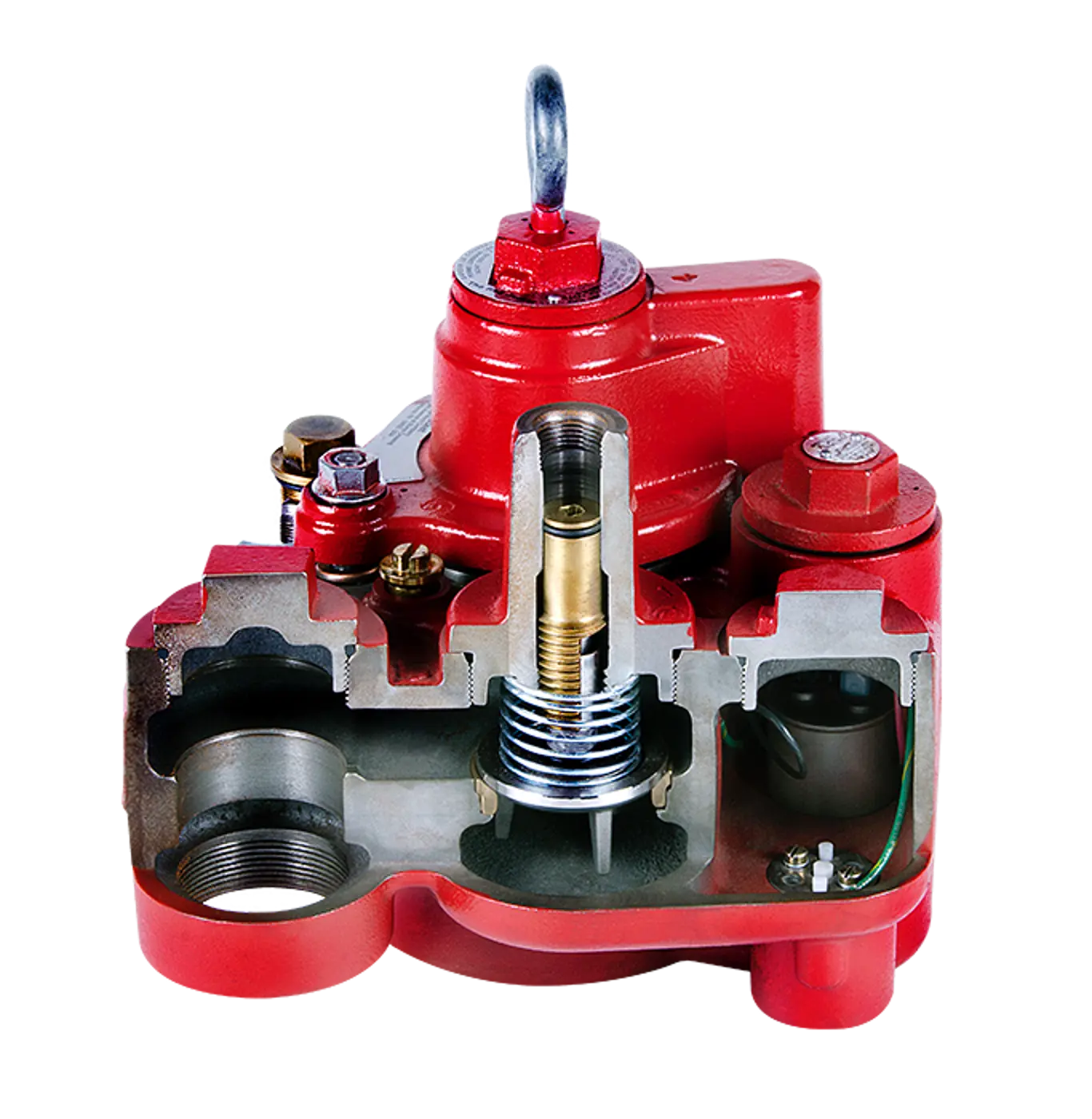

Fast installation, simple service and testing, and sets the standard for electrical and environmental safety:
Built-in Isolated Contractor’s Box – Electrical connection housing is built into the manifold and is completely isolated from the fuel path.
Easy to Install and Service – No adjustment required to fit yoke, assembly is quick.
Increased Electrical Safety – Automatic electrical yoke disconnects upon removal of extractable bolts.
Environmentally Friendly – Automatic breaking of extractible seal upon bolt removal ensures automatic fuel drain back into tank, protecting the environment from contamination and site owners from related liability.
Innovative Check Valve Design – “Open” setting makes for easier line tests and servicing.

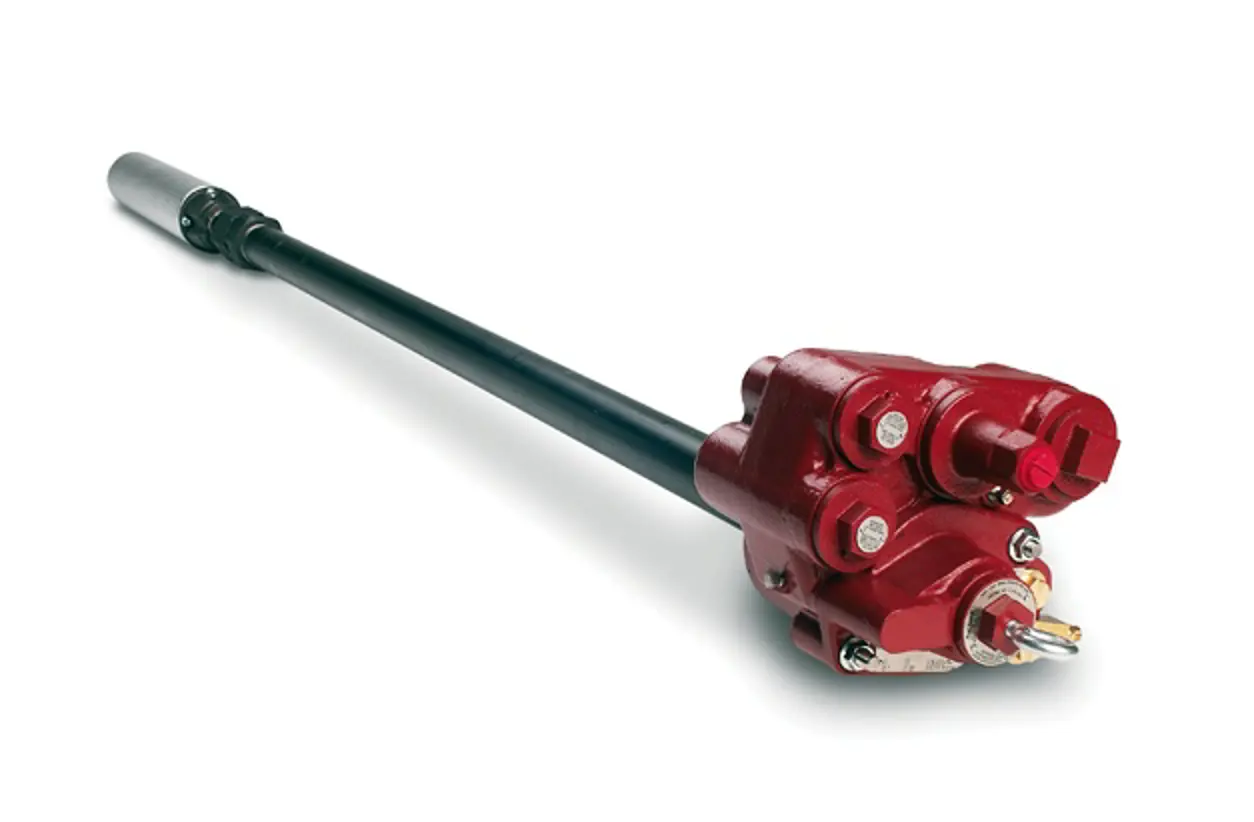

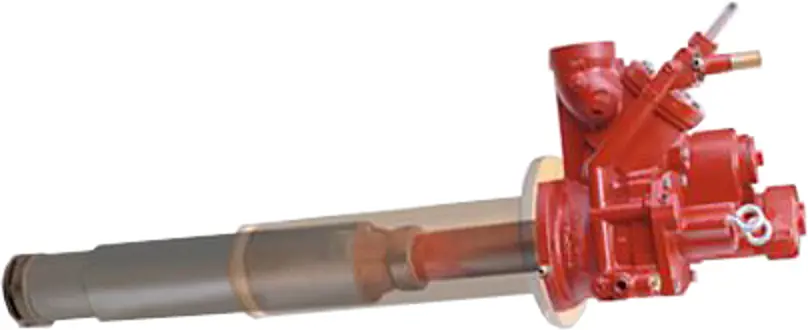

Red Jacket 4” Submersible Turbine Pumps
Horse Power	0.75	1.5	1.5 x 4	2.0
Standard Versions
Quick set models	P75U17-3 RJ1/2/3	P150U17-3RJ2	X4P150U17 RJ1/2/3	P200U17-4 RJ1/2/3
Part numbers	410140-074/5/6	410141-076/7/8	410143-071/2/3	410142-051/2/3
Fixed length models	P75U17-3 RJ	P150U17-3 RJ	X4P150U17 RJ	P200U17-4 RJ
Part numbers	410177-014	410177-011	410177-012	410177-013
Fuel compatibilty	Diesel, 100% Petroleum, 80% Petroleum with 20% Ethanol, Methanol, TAME, ETBE, or MTBE
Performance Specifications
Flow rate @ 0.7 Bar in petrol	200 LPM	300 LPM	220 LPM	330 LPM
Static pressure in petroleum	2.4 Bar	2.5 Bar	2.8 Bar	3.1 Bar
Installation Requirements
Electrical supply	3-phase, 50Hz, 380 – 415 Volts AC
Required NPSH (Net Positive Suction Head)	100 mm above pump inlet
Certification
ATEX approval	II 1/2 G EN15268 IIA T3 DEMKO 12 ATEX 1247797 X
Special conditions for safe use	See Manual 577014-049 for details of installation, operation and maintenance requirements
Field replacements for older STP models
New Replacement UMPs are available for old 3-phase and Single phase models - please refer to the current Red Jacket EU Price List
