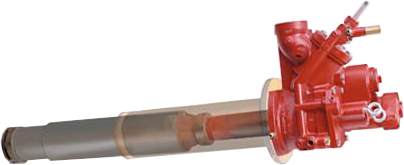

Red Jacket STP de meest geïnstalleerde brandstof dompelpomp ter wereld.

Functies

• Uitgebreide range opties
  ¾, 1½ of 2 HP versies 3-phase/50Hz  geschikt voor een wijde range met toepassingen en site configuraties.
• Consistente stroom
  Pomp brandstof efficiënt over grotere afstanden en hoogtes met hogere temperaturen.
• Integreerde leiding lekkage
  Mechanische of elektronische leiding lekkage controle via TLS monitoring systeem met automatische uitschakeling voor maximale bescherming van het milieu.
• Uniquely designed extractable
  When removed, check valve, leak detector and siphon cartridge remain in manifold and do not require disconnection.
• Hazard isolation
  The electrical connection is automatically broken as the extractable is removed. This means that fuel in the manifold and non-isolated piping drains are sent safely back to the tank preventing spills and reducing service costs.
• Vertical product discharge
  Allows easier connection to horizontal pipe work using standard pipe fittings.
• Twin siphon ports
  Two siphon cartridge ports allow connection to multiple systems. Unique swivel design allows easier connection.
• Lockable check valve
  Easily relieve pressure and drain non-isolated product in the manifold and line safely into the tank for testing or maintenance.

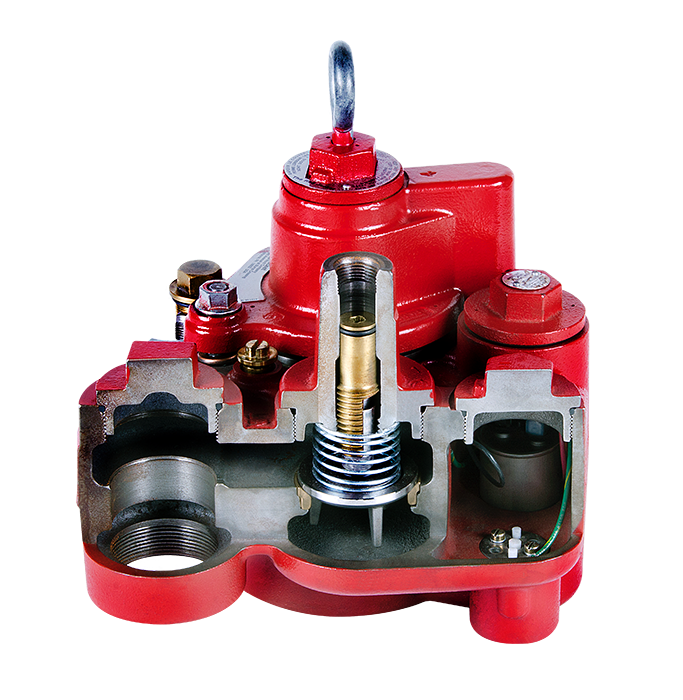

Advanced packer manifold design

• Fast installation, simple service and testing, and sets the standard for electrical and environmental safety:
• Built-in Isolated Contractor’s Box – Electrical connection housing is built into the manifold and is completely isolated from the fuel path.
• Easy to Install and Service – No adjustment required to fit yoke, assembly is quick.
• Increased Electrical Safety – Automatic electrical yoke disconnects upon removal of extractable bolts.
• Environmentally Friendly – Automatic breaking of extractible seal upon bolt removal ensures automatic fuel drain back into tank, protecting the environment from contamination and site owners from related liability.
• Innovative Check Valve Design – “Open” setting makes for easier line tests and servicing.

Technische gegevens Red Jacket STP

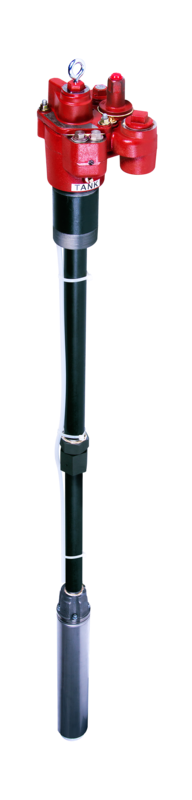

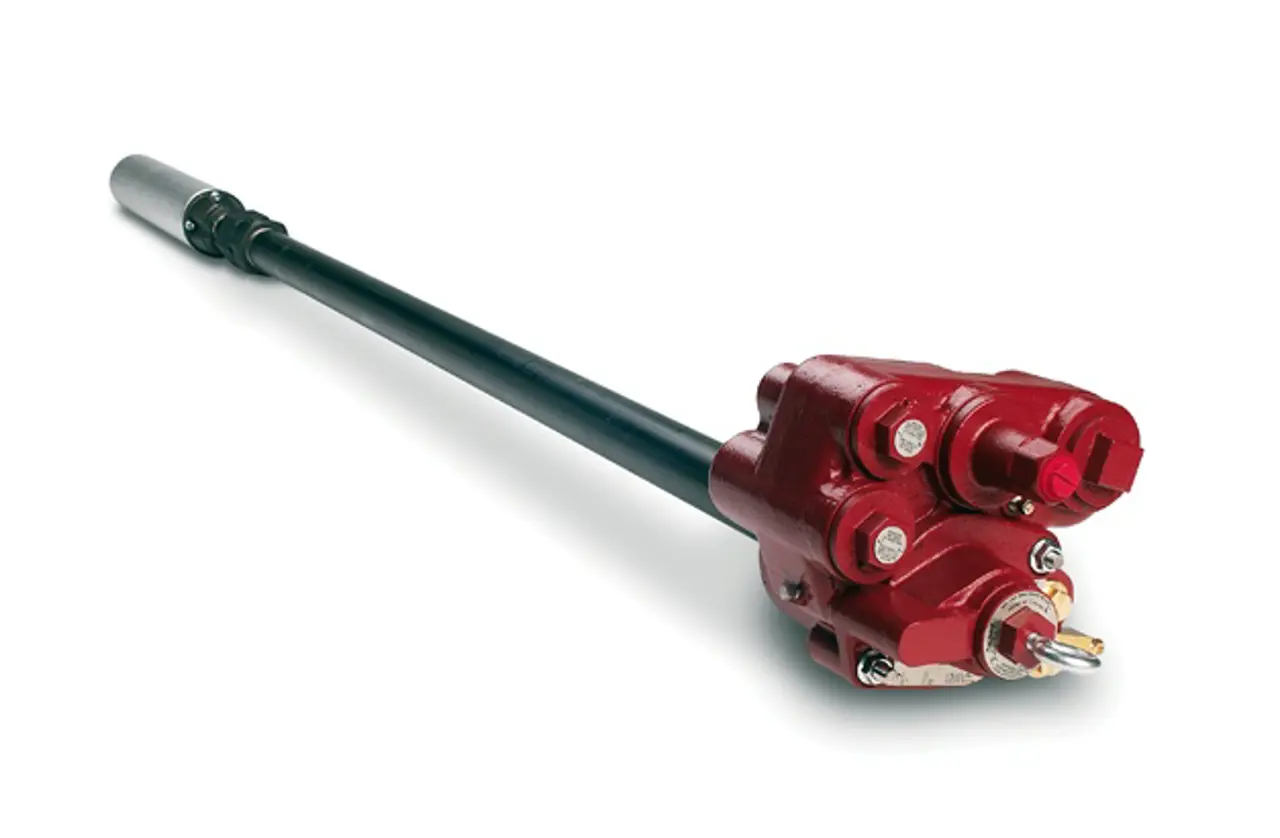

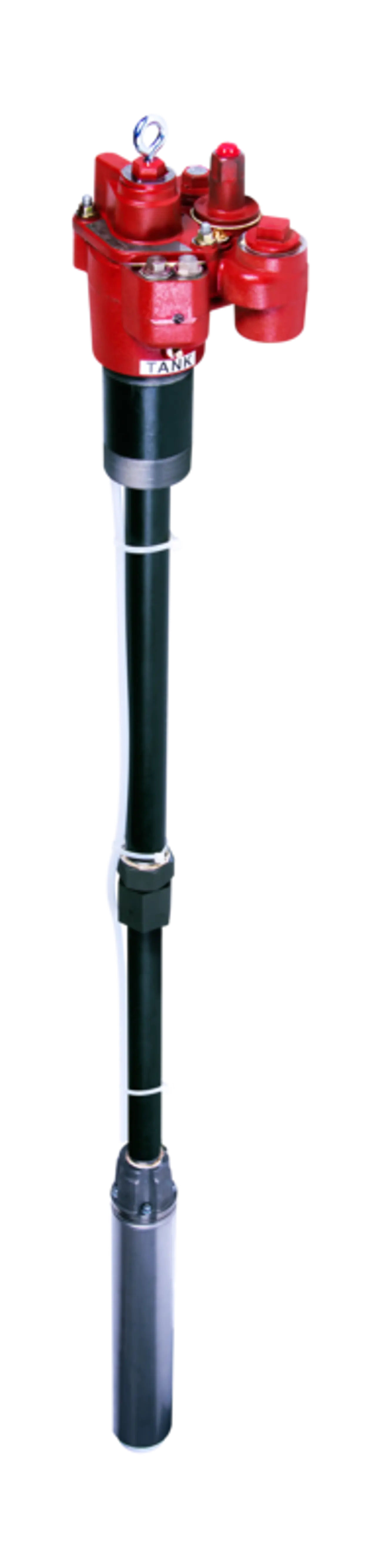

The Red Jacket^® AG STP

The cornerstone of your alternative fueling infrastructure, the Red Jacket^® AG series of submersible turbine pumps are built on the foundation of The Red Jacket^® model and is specially designed for resiliency in the harsh alternative fuel environment.

The Red Jacket^® AG STP is compatible with Ethanol or Methanol concentrations up to 100% and MTBE, ETBE or TAME concentrations up to 20%, and is UL79A and UL79B certified for use with renewable biofuels.

Technische gegevens Red Jacket AG STP

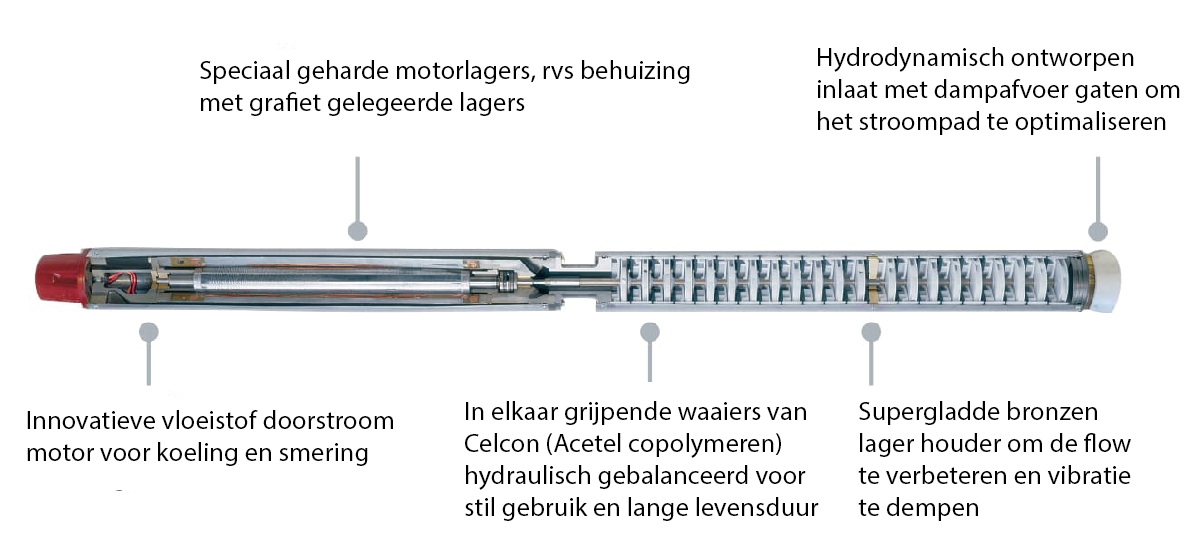

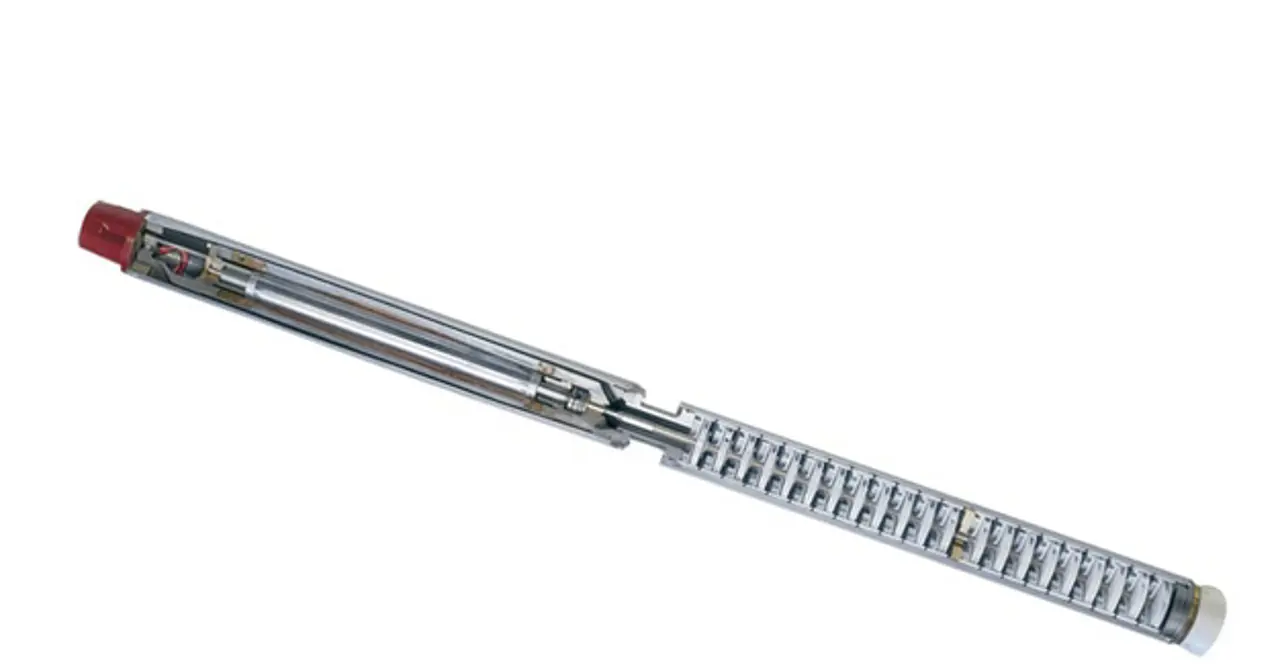

Red Jacket LPG Premier Range

De meest efficiënte manier om LPG te pompen

Behoud geruisloos optimale flow voor de beste klantervaring, verpompt LPG over grote afstanden, behoud flexibiliteit in stations ontwerpen en elimineer Vapor Lock condities.

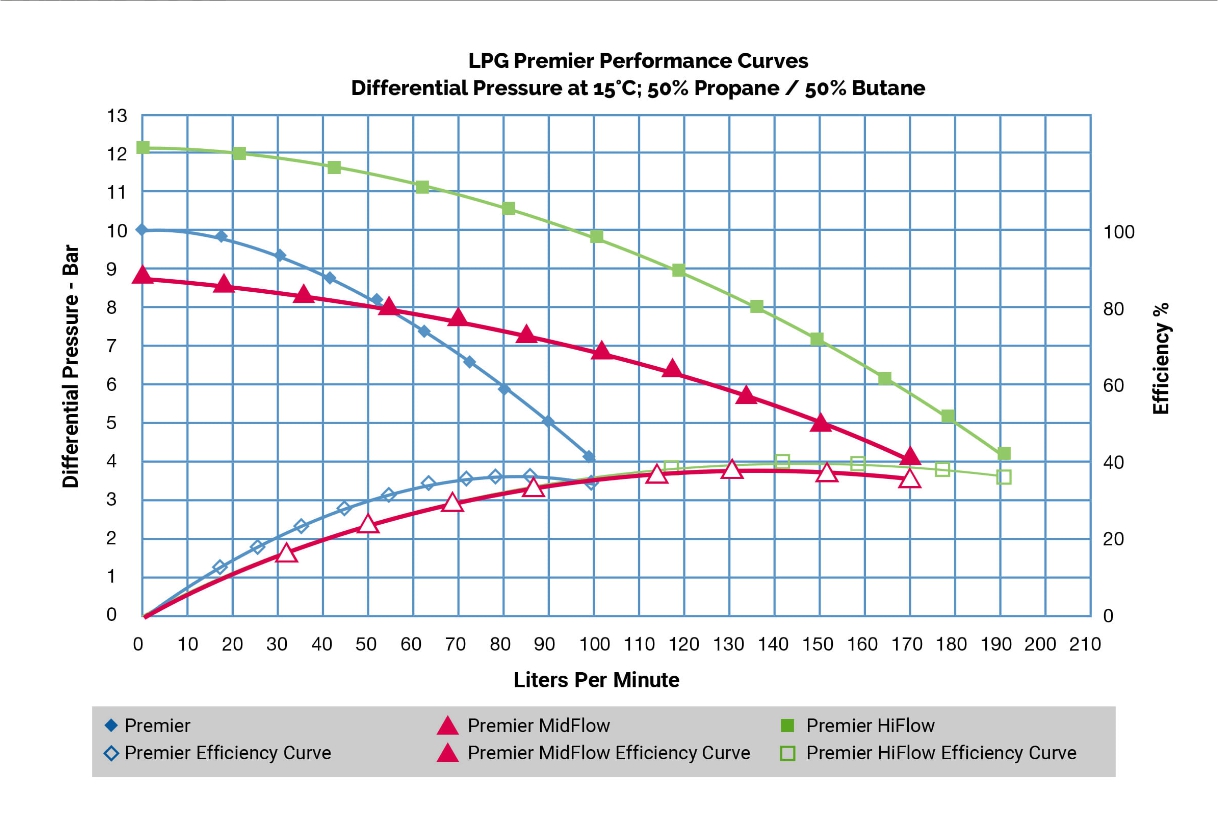

•   RJ Premier - Flow 70 liter per minuut bij 7 bar
•   RJ Premier - MidFlow 100 liter per minuut bij 7 bar
•   RJ Premier - HiFlow 150 liter per minuut bij 7 bar

Voordelen

• Higher flow rates, lower power consumption, and increased safety and reliability.
• Up to 5% Increased Flow – Improved stator and receptacle housing design provides larger fuel paths.
• 8% Less Power Consumption – More efficient motor design results in 8% reduction in wattage.
• Better Quality – Red Jacket’s motor manufacturing yields improved quality, which means more station uptime than other STPs on the market.
• Universal Compatibility – Fewer parts to stock.
• Improved Reliability – Improved bearing design and upgraded insulation yield longer motor life.
• Increased Safety – Maximum temperature remains ~125 degrees cooler vs. competitive models. Enhanced connectors separation meets latest flameproof standards.

Technische gegevens Red Jacket LPG
